FACILITIES & EQUIPMENT
We operate from our advanced facility based in Elandsfontein, Johannesburg. We are passionate about improving our area and constantly repair roads and pavements in the neighborhood.
StrucMAC is fully committed to playing its part in reducing greenhouse gasses and to the protection of our environment and planet. As such it has installed over 700kWp (Kilowatt Peak) of capacity in terms of Photovoltaic Arrays and is in the process of expanding this capacity to over 1200 kWp by end 2024
StrucMAC’s contribution to the environment, over the past 12 months, can be defined as follows:
- Coal Tonnage Saved – Estimated 350 Tons
- Coᴤ Tonnage Prevented – Estimated 900 Tons
- Trees Planted – Estimated 62000
(Solar Man Calculation Criteria Utilised in Estimation)
This means we are not dependant on local municipal power, and we are NOT affected by loadshedding or power outages. StrucMAC also collects rain and borehole water, which is filtered and treated to potable standards. This provides an estimated 90% of the water that we use. These investments are part of our environmental plan to create a sustainable production facility.
We have 2 x 16ton and 1 x 30ton portal cranes and 30 overhead interior cranes ranging from 4 ton up to 40 ton, which are serviced monthly. We have our own fleet of 94 vehicles and drivers ranging from small run around’s, field service vehicles to a 24 ton low bed Hino700.
We have over 80 different machines ranging from conventional lathes to
4-Axis boring mills
Get in touch today
Our Machines
Boring Mills
Fermat WF 13R CNC floor type boring machine
Double rotary table for machining 10m X, 3.5m Y, 0.7m Z, 0.8m W
SANCO SHM-11020RF
CNC horizontal boring & milling machine complete with Renishaw
probe and tool setting system
1.5 x 1m table.
X travel 1.5m, Y travel 1.5m, Z travel 1.2m and W travel 0.4m
SANCO SHM-11040RF
1.4 x 1.6m table.
X travel 4m, Y travel 2.3m, Z travel 1.6m and W travel 0.5m
SKODA FCW140
3 x 3m, 60 ton turn table.
X travel 10m, Y travel 3.5m, Z travel 3.5m and W travel 1.5m
FFG FHM-500
CNC machine center with pallette changer
0.5m x 0.5m x 0.5m
SANCO SHM-800L boring mill
0.8 x 0.8m table.
X travel 2m, Y travel 1,5m and Z travel 1m
SANCO SHM-3030R boring mill
8 ton table
X travel 3.5m, Y travel 2.3m, Z travel 1.6m and W 0.5m
Manual, Vertical & CNC Lathes
Harp CW6280
Center lathe with 0.6m swing x 3m long
Yunnan Cypml 660x2000G
Center lathe with 0.6m swing x 2m long
DMTG-CD6245B
Center lathe with 3m swing x 1.5m long
CRAFT L760X3300 LATHE
Manual Lathe. 3.3m centres. 660mm swing
CKH 61200
Horizontal CNC lathe with 1.5m swing x 3m long
CTW61160B / 8000mm
Lathe with 1m swing x 8m long
Feeler FTC-350XL
CNC center lathe with 3m swing x 1.5 long and bar feeder
YuShine YSP VL-1000ATC
Max swing Ø1350mm, Max turning Ø1150mm,
Max turning height 1070mm
Leadwell LTC35CXL
Lathe with driven tooling and with 0.6m swing x 3m long
Leadwell LTC25i
Lathe with driven tooling and bar feeder
Leadwell LTC 20 DMY
with prodis STM65 driven tooling and bar feeder
BEamline
Voortman V630 drilling system with V1050 Ban saw combination
for automatic cutting, drilling and marking.
We can cut beam profile section 1.13 x 0.5 x 13m long
while drilling 3 sides simultaneously and mark 4 sides simultaneously.
Milling Machines
SANCO SDM-4225L
Bridge type milling machine with bed 4l x 2w x 1.8h m
Leadwell V-40L
CNC machine center with 1m x 0.5m bed
2 of Leadwell V60it
5-Axis CNC machine center
SINO SP1020 DOUBLE COLUMN MACHINING CENTRE
Milling machine 2l x 1w x 1 h m
SANCO SVW-4222
Bridge type milling machine with bed 3.8l x 1.8w x 1.8h mm
Feeler NB-1100A
CNC machine center with 1m x 0.5m bed
Bemato BMT-2473R
CNC machine with 1.2m x 0.5m bed
Leadwell V-50L
CNC machine centre with 1m x 0.5m bed
Leadwell MCV-1500it
CNC machine center with 1m x 0.5m bed
TIMAC X6325D MILLING MACHINE
Manual Milling machine, Bed 254x1370mm, travel 800mm,
cross travel 400mm
Drills
HARP Z3063x20/1 Radial arm drill
We can drill up to 63mm diameter
Radial arm drill Z3050x16(I)
Fixed tooling position, 16 speed auto downfeed,
drill capacity 50mm
Kitchen Walker Mach Type-E-3 Honeywell radial arm drill
Driiling Ø63mm, arm length 1828mm, spindle taper 5m,
Spindle travel 381mm, Spindle speed 18-1500rpm
Harp radial arm drill
Fixed tooling position, 16 speed auto downfeed,
drill capacity 50mm
Hydraulic & Bending Presses
HELI 170-3000 bending press
We can press 170 ton x 3m long
150 ton hydraulic press and punching machine
TRUMPF TruBend 3180
3meter 180ton 4 axis cnc bending press
BYSTRONIC XPRESS 50 BENDING MACHINE
1meter 50 ton bending press
150 ton long bed hydraulic press
Ermaksan
Power-bend pro 4100 x 600 ton 6 axis press brake with hydro mechanical
crowning system prepped for tandem
HELI PTO 400x4000 bending press
400ton HELI press brake 4m long
150 ton hydraulic press
TRUMPF TruBend 3100
3meter 100ton 4 axis cnc bending press
HYDRAULIC BENDING MACHINE HPB-790
3meter 100 ton bending press

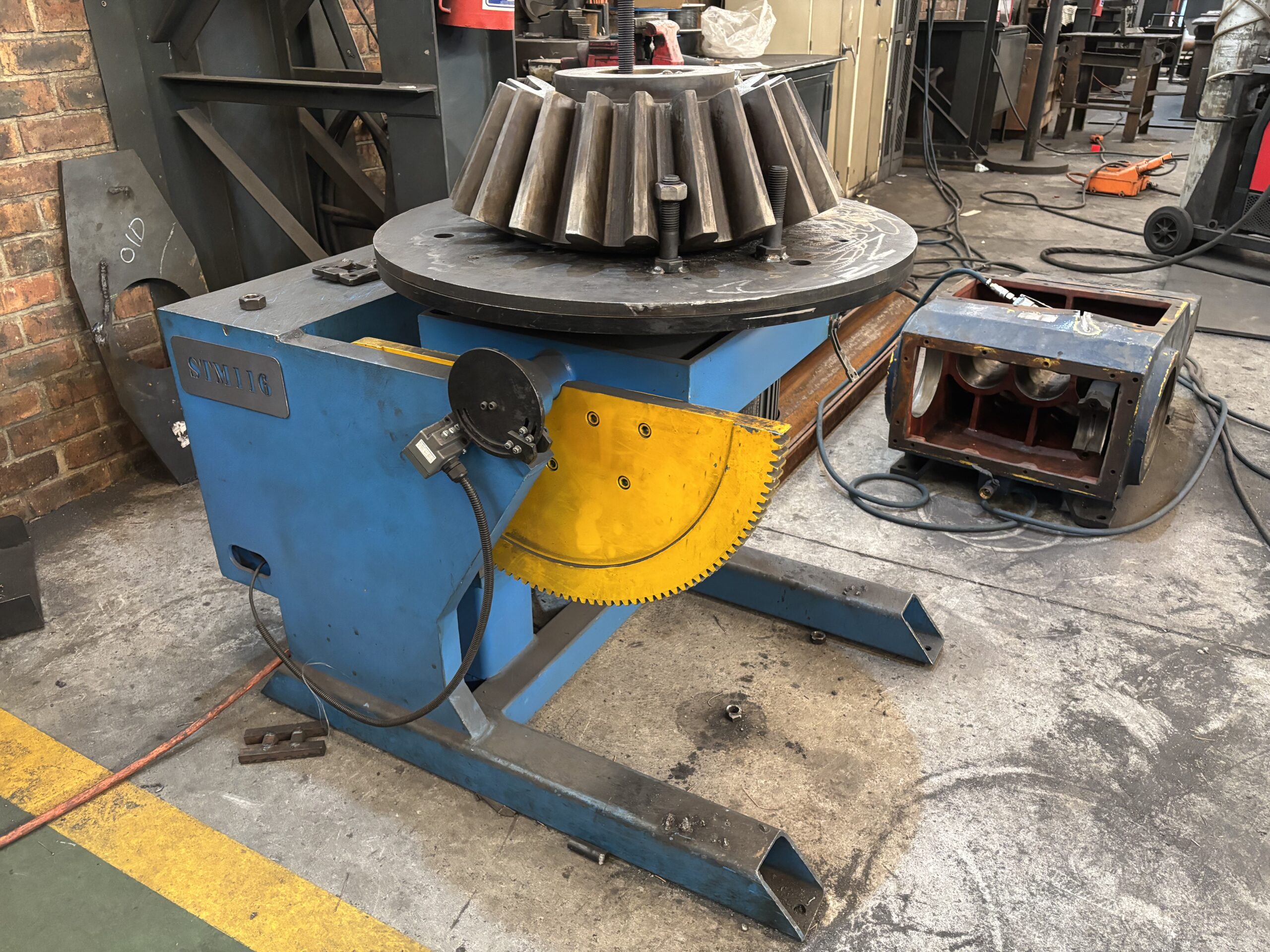

Welding station & Manipulators
1000AMP SUBMERSIBLE WELDING STATION
1000AMP AC and DC controlled wave power supply with a 6m x 4,5m travel
RANSOME E14732 1000-P WELDING MANIPULATOR
15ton single point manipulator
BODE HTS-800 WELDING MANIPULATOR
15ton Head and tail stock manipulator
LINCON ELECTRIC WELDING MANIPULATOR
2ton single point manipulator
KISTER Hp15000 WELDING MANIPULATOR
15ton single point manipulator
Bandsaws
BEMATO BMT 330SA Bandsaw
Cutting capacity – Circular 330mm, rectangular 330x480mm
H-530HA SAW
Cutting capicity – rectangular 520x500mm
LX250AE BANDSAW
Cutting capicity – circular 250mm, rectangular 250x300mm
Miscellaneous
EBS HANDJET 250 HANDHELD PRINTING MACHINE
Portable ink jet printed max 35mm high, continuous printing
VICTOR FG-3080AH SURFACE GRINDER
300 x 600mm Surface grinder
MITSUBISHI MV2400S WIRE CUTTER
Table dimension 840×640, Max height 200mm,
Wire diameter 0.15mm
Profile & Plasma
4 off Profile machines
3 Multi head profile machines can cut 6 – 300mm mild steel
Microstep
Profile side cuts up to 300mm plate & can bevel
Plasma side cuts up to 150mm mild steel &
50mm stainless & can bevel
Guillotines & Slotter
2 off HELI 13-3100 guillotine
We can cut 3000mm long x 10mm thick
Eastar CNC slotter CNC300
Working table Ø560mm, Bore of rotary table Ø75mm,
longitudinal and cross travel of working table 432mm
Lasers
TRIUMPF 6KW fibre laser
with 6000×2500 pallet changing bed
Cuts from 0.5mm to 25mm mild steel and stainless steel
BYSTRONIC BYSTAR FIBER
15kw Fibre laser with 8000 x 2500mm bed
Rollers & Sectional Rollers
Germani & MG 16mm Plate Rollers
3meter long
MG ROLLER MH 206P
10mm over 2 meters
